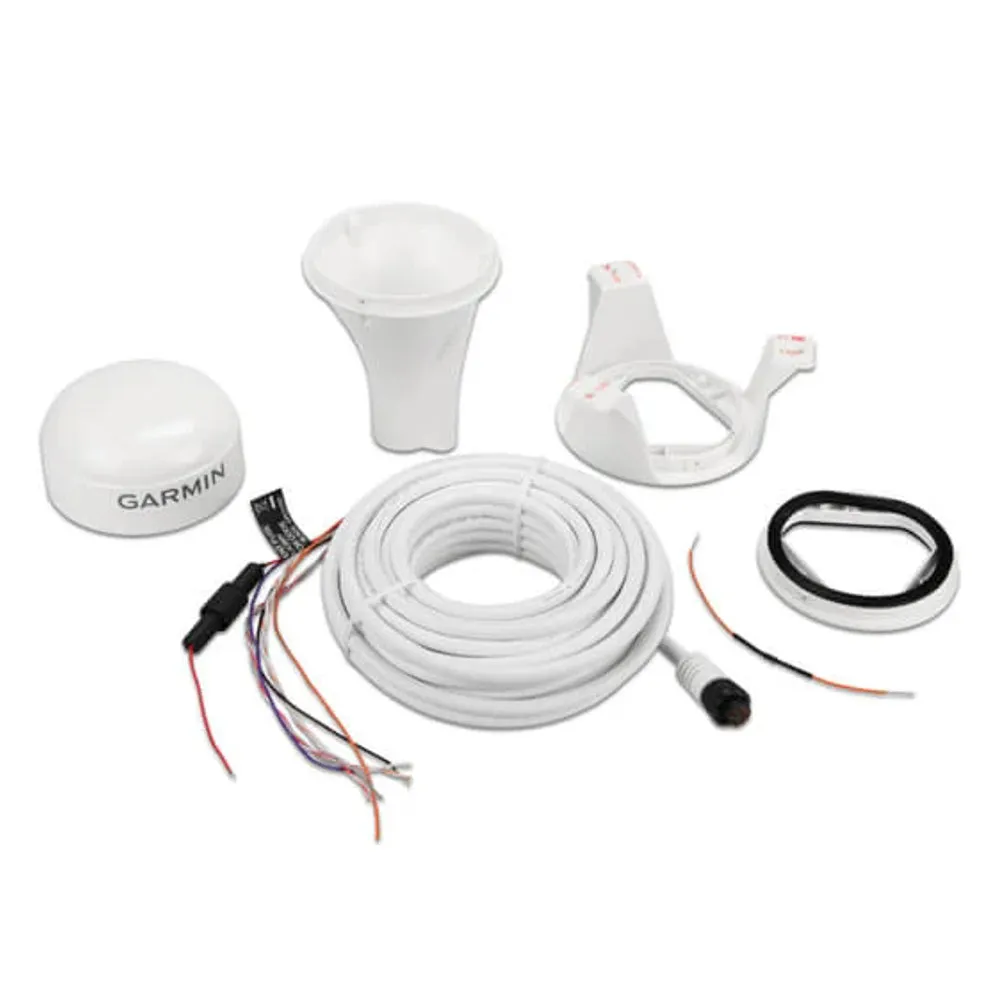

GPS 24xd HVS GPS Antenna with Heading Sensor - NMEA 0183

The GPS 24xd position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.

Features:

• Navigate in more locations with expanded GNSS support
• Get high-sensitivity tracking with fast GPS update rate
• Accurately pinpoint your heading regardless of speed
• Its water-resistant (IPX7) to withstand the elements
• Install it easily with multiple mounting options
• The antenna is compatible with NMEA 2000 devices

MULTI-BAND GNSS

Multi-band GNSS provides location accuracy to within 1 metre to compatible marine multifunction displays, instrument displays and autopilots.

MAGNETIC HEADING

The magnetic heading sensor provides accuracy to within 3 degrees, stabilising charts, radar overlay and MARPA even at slow speeds.

HIGH-SENSITIVITY GPS

Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.

MULTI-SBAS COMPATIBLE

Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

MOUNTING OPTIONS

Installation is easy with under-deck, pole and surface-mount options.

Specifications:

• Type: Antennas
• Box Dimensions: 7"H x 7"W x 7"L WT: 2.65 lbs
• UPC: 753759248208
